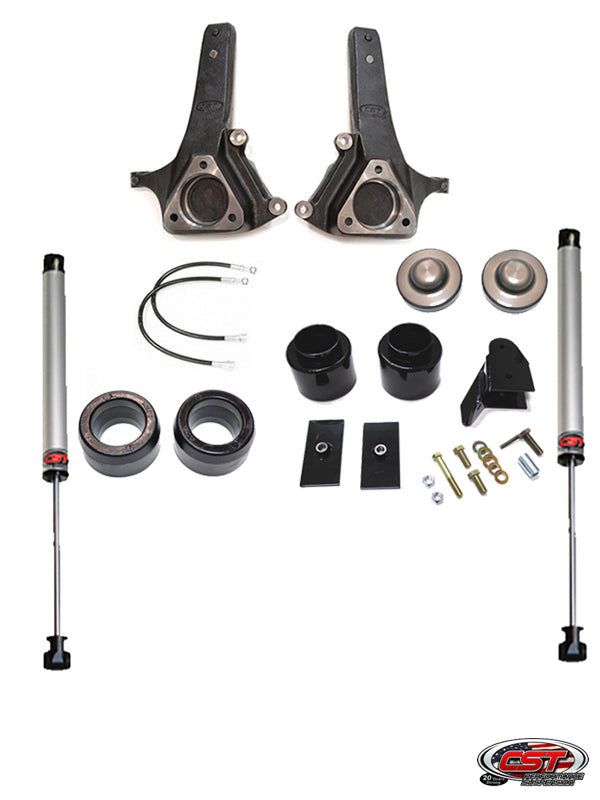

09-12 Dodge RAM 1500 2wd 7" Stage 3 Suspension System

Description

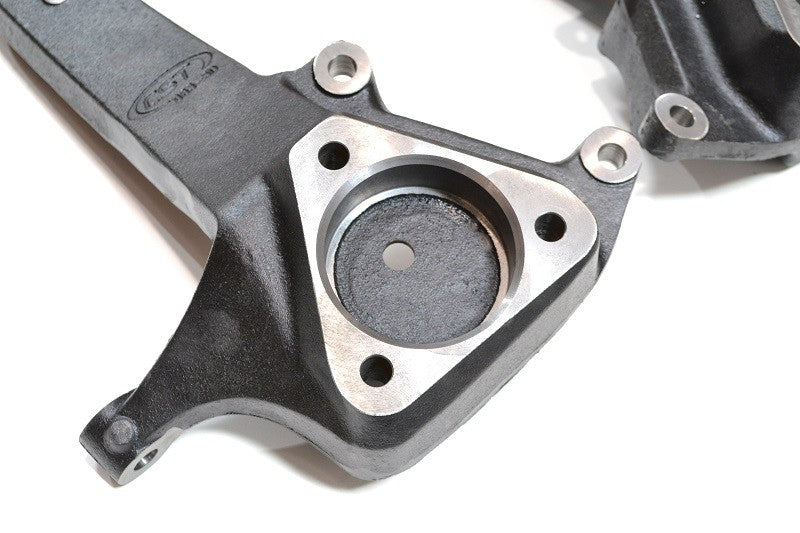

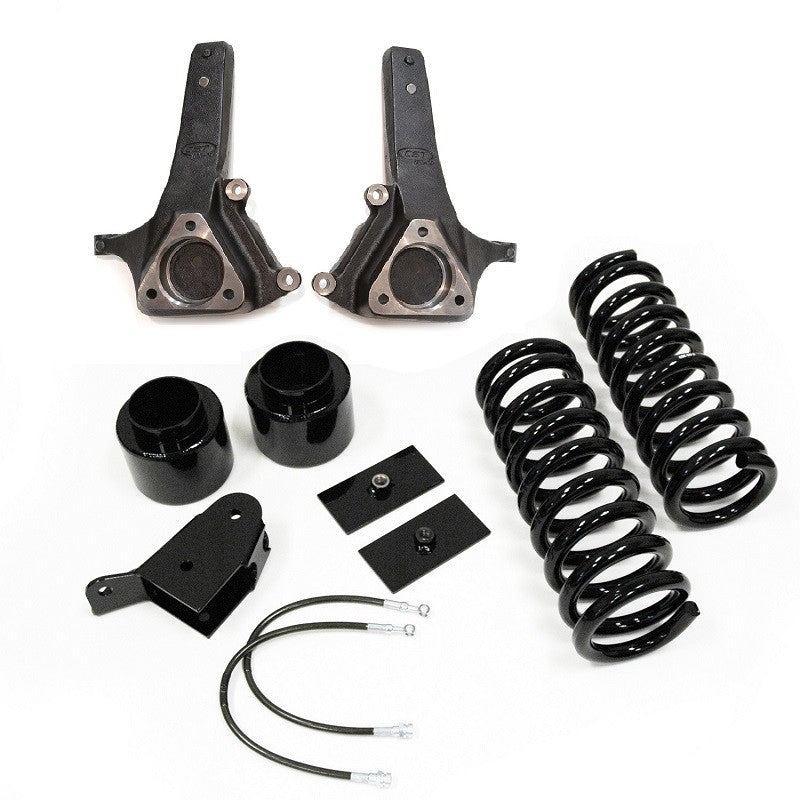

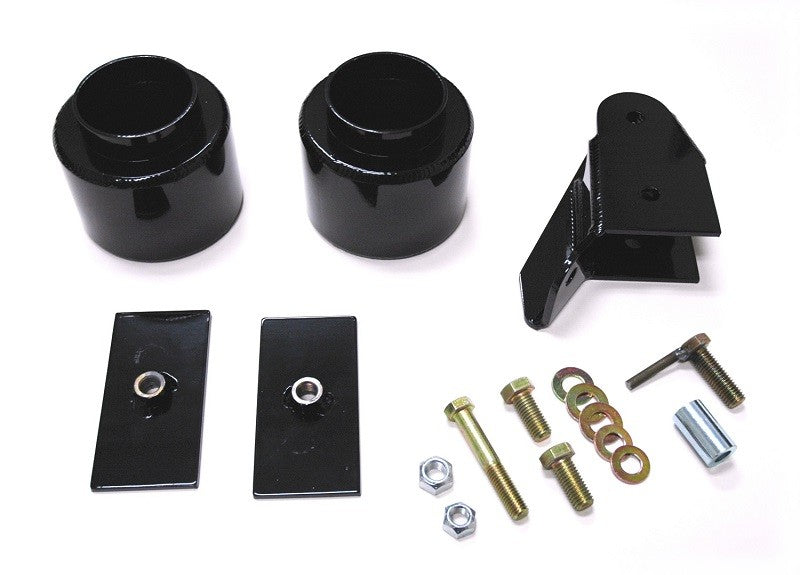

WE SET OUT TO OFFER OUR CUSTOMERS SUSPENSION LIFT OPTIONS THAT WOULD PROVIDE INCREASED GROUND & TIRE CLEARANCE WHILE MAINTAINING THE STOCK RIDE, HANDLING & LOAD RATING! FIRST WE PROVIDE 4″ OF LIFT USING OUR CAST-IRON LIFT SPINDLES THEN ADD COIL SPACER TO GET TO A TOTAL OF 4″ OF FRONT LIFT. IN ADDITION TO THE FRONT SPINDLES AND SPACERS YOU MUST RUN THE CST STEEL BRAIDED BRAKE LINES (PART# CSS-D11-1) INCLUDED IN THIS KIT. FOR THE REAR OF THE TRUCK THIS CST KIT USES 4″ FABRICATED SPACERS AND A FABRICATED PAN-HARD BAR DROP, KEEPING THE FACTORY REAR LOAD RATING & RIDE QUALITY.

KIT FEATURES

• INCREASED GROUND & TIRE CLEARANCE.
• PARTS COVERED IN A HIGH QUALITY GLOSS BLACK POWDER COAT FINISH.
• NO WELDING REQUIRED.
• ABILITY TO RETURN TRUCK TO STOCK.
• MAINTAINS FACTORY LOAD RATING & REAR COIL RATE.
• LEVEL STANCE ON MOST TRUCKS
• STEEL BRAIDED FRONT BRAKE LINES.
• DESIGNED TO FIT 35″ TIRES WITH 9″ WIDE WHEELS.
• ALL PARTS MADE IN THE USA!

NOTES

• REAR SHOCKS ARE REQUIRED BUT ARE NOT INCLUDED IN THIS KIT. (SEE ABOVE)
• 17″ WHEELS CAN NOT HAVE MORE THAN A 4.75″ BACKSPACING.
• THIS KIT IS APPROVED FOR THE 09-12 RAM 1500 2WD CREW CAB WITH A HEMI ENGINE, V6 OR ECO-DIESEL. LIFT HEIGHT MAY VARY ON SMALLER CAB & ENGINE SIZES.

SUGGESTED WHEEL & TIRE SIZES

• 33×12.5” OR SIMILAR ON 9-10” WIDE WHEELS
• 315 / 70 / 17 ON 8-10” WIDE WHEELS
• 35” X12.5” ON 9 OR 10” WIDE WHEELS (MINOR TRIMMING REQUIRED)
• ANYTHING LARGER, TALLER OR WIDER IS BEYOND CST RECOMMENDATIONS AND UP TO THE INSTALLER.
• MAXIMUM BACKSPACING / 17″ WHEELS IS 4.75″ / 18″ OR LARGER IS 5″
