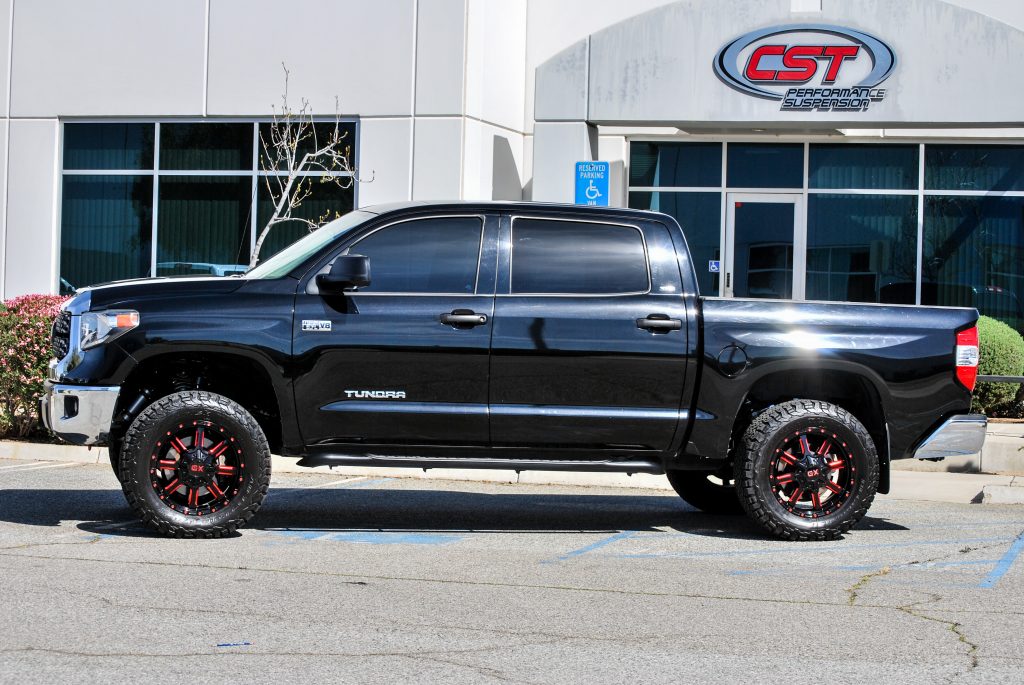

07-21 Toyota Tundra 2wd 5" Stage 2 System

Description

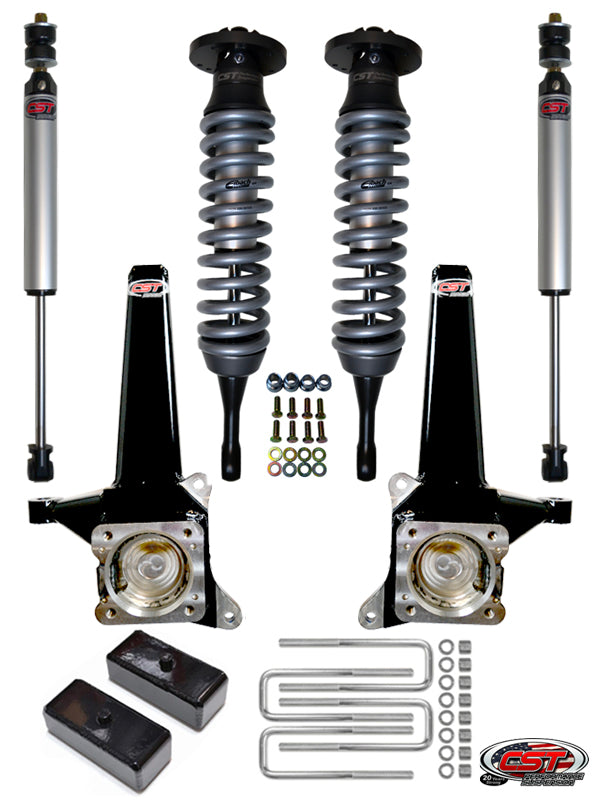

CSK-T5-2 5″ SPINDLE/COILOVER STAGE 2 SUSPENSION SYSTEM

FABRICATED LIFT SPINDLE FEATURES

• LIFT SPINDLES ARE CONSTRUCTED OF PRECISION LASER CUT ¼” OR BETTER STEEL, CNC MACHINED BALL JOINT TAPERS, AND COMPLETELY MIG WELDED.
• SPINDLE KIT INCLUDES BILLET SWAY BAR BRACKETS ALLOWING THE USE OF THE FACTORY SWAY BAR.
• FABRICATED & MACHINED IN HOUSE BY CST.
• INCLUDES BRAKELINE BRACKETS.
• MINIMAL TRAC WIDTH CHANGES.
• O.E. RIDE AND HANDLING.
• CST QUALITY FIT, FUNCTION & FINISH!
• MADE IN THE U.S.A.

SUGGESTED WHEEL & TIRE SIZES

• 33” x12.5”
• 35” x12.5” OR SIMILAR ON 8” WIDE WHEELS
• 35” x12.5” ON 9” WIDE WHEELS (TRIMMING REQUIRED)
• 4.75″ MAX BACK-SPACING TEST FIT 18″ OR LARGER WHEELS ABOVE 4.75 INCHES OF BACK-SPACING!
• ANYTHING LARGER, TALLER OR WIDER IS BEYOND CST RECOMMENDATIONS AND UP TO THE INSTALLER.

• MAXIMUM BACKSPACING IS 4.75”
